DS-K5604A-3XF/V

Ограничена наличност

Standalone kiosk with biometric terminal for access control with facial recognition, fever and masks detection

At a time like this, the right decisions would bring security and peace of mind to our employees, relatives and friends. High-tech solutions for detecting and preventing access by people with viral symptoms, fever or not wearing a protective mask are an excellent addition to the hygiene and organizational activities that companies undertake.
We present a new generation of Contactless access control terminals with added unique functionalities, such as restricting the access of people with fever and those without protective masks in residential, administrative, public, industrial and business buildings, schools and receptions.

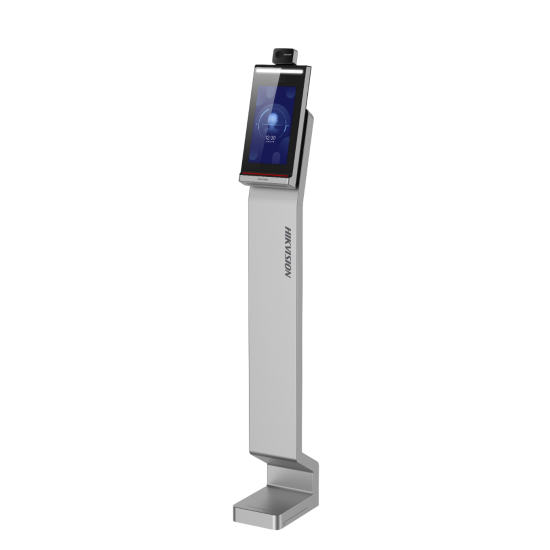

HIKVISION DS-K5604A-3XF/V is a combined stand-alone biometric access control terminal with facial recognition with built-in detection of human face temperature and wearing a mask to restrict access to people with fever. The terminal is designed for installation of a turnstile and can be provided to access control through an intelligent algorithm for face recognition, access via a contactless Mifare card, additional measurement of body temperature.
The innovative camera built into the controller measures the temperature and recognizes the faces of people from a predefined database with a capacity of up to 50,000 people. HIKVISION DS-K5604A-3XF/V can be integrated with existing access control systems, turnstiles, entrance doors, and according to set criteria to provide access to authorized persons or to refuse such at a higher body temperature, for example
• Measures the temperature of the human face
• Instant individual temperature measurement through the built-in thermographic camera for body temperature detection with an accuracy of ± 0.5 C
• Detection of people with a mask and blocking the access of people without a mask
• Function to block people with fever
• Intelligent face recognition thanks to the built-in Deep learning algorithm
• Face recognition time up to 0.2 sec / accuracy up to 99%
• Detection distance 0.3 to 2 m
• 10 '' color LCD touch-screen display for visualization of authorized or denied access
• Built-in reader for contactless Mifare access control cards
• Wide-angle WDR face recognition camera
• Infrared camera for heat detection by a living person
• Different authorization modes (card, body temperature, face) or a combination of them
• Database for 50,000 people
• Memory for 50,000 access control cards
• Memory for 100,000 access control events
• Inputs: 1 for exit button, 1 for door status, 2 alarm
• Outputs: 1 for door, 1 alarm
• RS-485 and Wiegand interface for connection to existing access control systems
• LED and audible indication of authorized or denied access, fever, wearing or without a mask
• Tamper
• Ethernet + USB interface
• Operating temperature: 0 ° C to + 50 ° C
• Suitable for indoor installation
• Power supply: 12V DC / 2A
• To obtain accurate temperature measurements it is necessary to wait 90 minutes after switching it on.
* If you need a higher level of security, use multiple authentication modes - facial recognition in combination with a contactless access control card to ensure the reliability of the access control system
