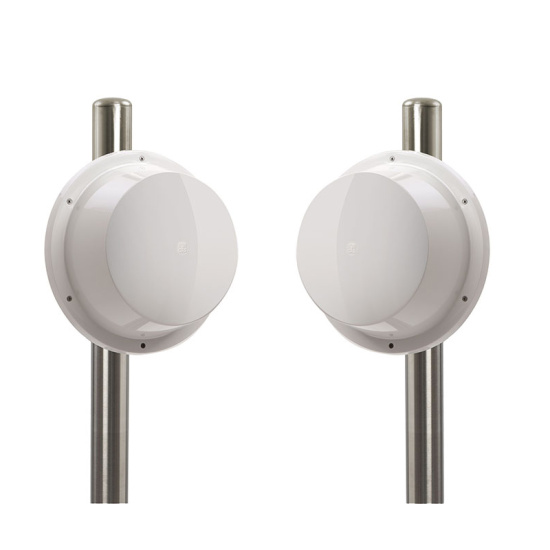

The ERMO482 microwave barrier consists of a receiver and a transmitter that are installed opposite each other, creating a protective zone, the dimensions of which change depending on the type of antenna, the distance between the heads and the sensitivity settings. The ERMO482 is available with ranges of 50, 80, 120 and 200 meters.

The ERMO482/50 model has a 100mm parabolic antenna that is capable of creating very large detection fields at a short range. ; The ERMO482 is a detector specially designed for outdoor use and has the ability to be set up in all types of atmospheric conditions. It has sensitivity and integrated controls for target discrimination. It also has a system of 4 preset modular codes (channels), which system protects the interface at crossing points.

ERMO482 uses new generation microwave components that are extremely stable thanks to technologies such as “ strip line”, “gas fet”, “dro”, together with the parabolic antennas and reflector. Everything in the ERMO482 is designed and manufactured inCIAS' own laboratory.

· Range: 50m

· Frequency: x-band, certified in many countries and in accordance with European, US and Canadian standards

· Power supply: 19vac/13.8vdc/24vdc (13.8vdc battery charger)

· Consumption: tx 100 ma – rx 100 ma (13.8 vdc)

· Temperature: -35°c/+65°c

· Channels: 4 on-off

· Modulation: Continuous

· Regulation: Continuous

· Dimensions/Weight: Maximum ø – 310mm, depth 260mm

· Programming: Electronic,via STC95

· Outputs: Relays for alarm, tamper

· Special applications: Model available for application in potentially explosive atmospheres
