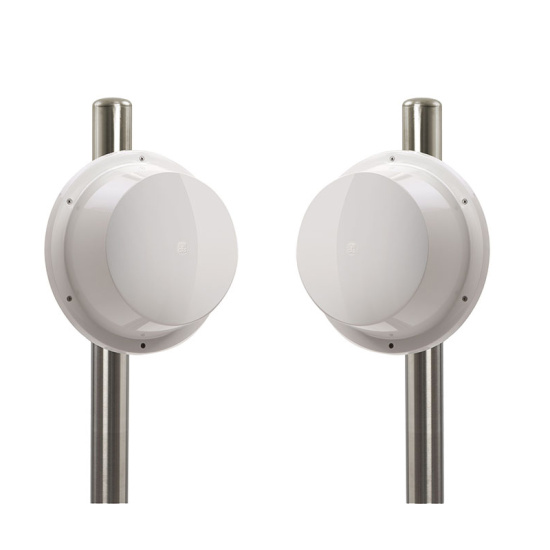

The ERMO482 microwave barrier consists of a receiver and a transmitter that are installed opposite each other, creating a protective zone, the dimensions of which change depending on the type of antenna, the distance between the heads and the sensitivity settings.The ERMO482/200 model has 200mm parabolic antenna that creates a narrow field, more useful when available space is limited but distances are long.

The ERMO482 is a detector specially designed for outdoor use and has the ability to be set up in all types of atmospheric conditions. It has sensitivity and integrated controls for target discrimination. It also has a system of 4 preset modular codes (channels), which system protects the interface at crossing points.

Range: 200m
Frequency: x-band, certified in many countries and in compliance with Europe, USA and Canada standards
Power supply: 19vac/13.8vdc/24vdc (battery charger 13.8 vdc)
Consumption: tx 100 ma – rx 100 ma (13.8 vdc)
Temperature: -35°c/+65°c
Channels: 4 on-off
Dimensions/Weight: Maximum ø – 310 mm, depth 260 mm
Programming: Electronic, via STC95
Outputs: Alarm relays, tamper
