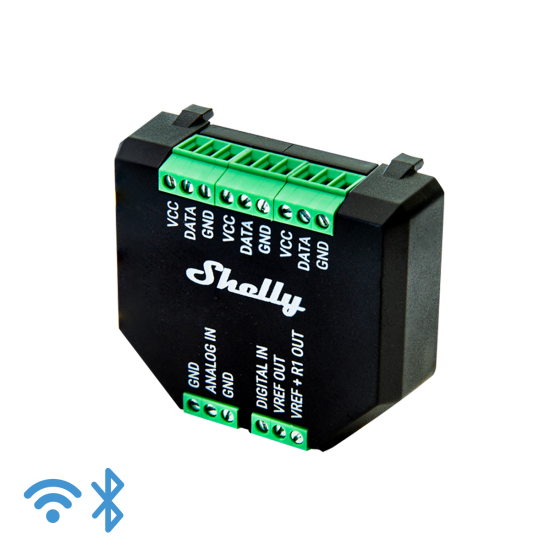

Shelly Plus Add-On

Temperature or temperature and humidity sensor interface for Shelly Plus 1/1PM/2PM/i4/i4DC

Shelly Plus Add-On

Ограничена наличност

Temperature or temperature and humidity sensor interface for Shelly Plus 1/1PM/2PM/i4/i4DC

  • Temperature or temperature and humidity sensor interface for Shelly Plus 1/1PM/2PM/i4/i4DC
  • Can be used with up to 5 pcs. DS18B20 or 1 pc. DHT22 (if you want to monitor temperature and humidity)
  • Has analog and digital input
  • Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices with just your voice!

  • Highly compatible

The Shelly Plus Add-On is compatible with most Arduino sensors! Use its digital or analog inputs to measure the parameters you want and create complex automated scenes based on the sensor data.

WHY Shelly Plus Add-On?

  • Measure and control with precision

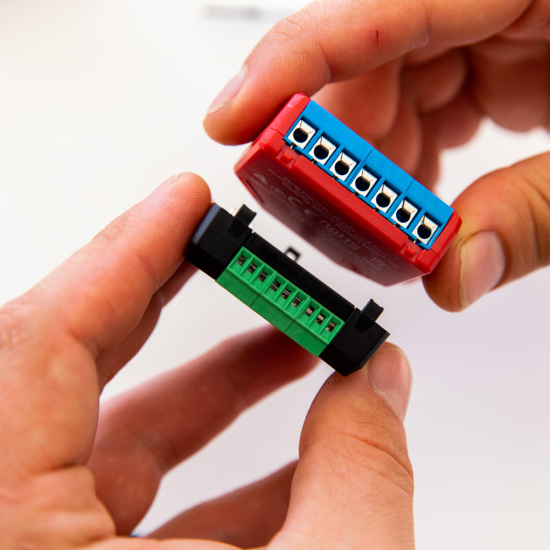

The Shelly Plus Add-on is a galvanically isolated touch interface for all Shelly Plus relays. Use it to measure temperature and humidity using its 1-Wire terminals, or connect various analog and digital sensors for complex automation and higher efficiency.

Shelly Plus Add-On Applications

  • Motion Controlled Lights

The Shelly Plus Add-On can also be connected to a PIR sensor to light up rooms you occasionally use in the house. That way, when you enter the room, the light will be on for as long as needed.

  • Watering only when needed

Have a beautiful garden is not an easy task and automating your irrigation system can save you time and optimize your costs. Together with a soil moisture sensor, the Shelly Plus Add-on can trigger the Shelly Plus 1 to turn on irrigation only when needed, always skipping rainy days.

  • Awning that follows the weather

Outdoor motorized awnings offer pleasant shade for your guests on sunny days. However, strong winds can damage them beyond repair. By combining a wind sensor connected to the Shelly Plus AddOn and the Shelly Plus 2PM can automatically close the outer awning to protect it from the wind. In addition, the combination of the Shelly Plus Add-On with a rain sensor can trigger the Shelly Plus 2PM to open the awning just in time to protect your guests from the rain.

  • Control your lights based on the illuminance

Together with the LDR (photoresistor), the Shelly Plus Add-on can trigger the Shelly Plus 2PM to open the blinds when the room is too dark and it is still daytime. Furthermore,when the light is low, Shelly Plus Add-on can trigger Shelly Plus 1 to turn on the lights at the right time.

  • Always be informed

Using the Shelly Plus Add-on and two DS18B20 sensors, you can easily measure the exact temperature in your aquarium as well as the room temperature. Based on this data, you can maintain a comfortable and healthy environment for your pets. You can also connect a liquid level sensor to the add-on and always be sure that the water level is at the optimal level.

  • Track the status of the garage door
  • You can connect a tube switch sensor to the Shelly Plus Addon digital sensor and monitor the status of your garage door. That way, you'll always know if it's open or closed when you're away and take appropriate action.

    Specifications

    • Size ( HxWxD): 37x42x15 +0.5 mm
    • Weight: 105 g
    • Body material: Plastic
    • Maximum torque of screw terminals: 0.1 Nm< /li>
    • Wire section: max. 1 mm² / 17 AWG
    • Exposed Wire Length: 4.5mm
    • Color Black
    • Ambient Temperature: -20 °C to 40 °C
    • Humidity 30 % to 70 % RH
    • Max. altitude 2000m
    • Supply voltage DC: 3.3 V (from Shelly plus device)
    • Power consumption: < 0.5 W (no sensors)
    • OUTPUT CIRCUIT RATINGS
    • VCC max. current: 10 mA
    • VREF OUT max. current: 1 mA
    • VREF+R1 OUT resistor 10 k?
    • Shelly Plus supporting additional devices: Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DC
    • Temperature reading: Depends on DS18B20 or DHT22 sensors
    • Humidity reading: Depends on DHT22 sensor
    • Digital input: -15V to 0.5V (true) / 2.5 V to 15 V (false)*
    • Analog Input Range: 0 to 100%
    • Analog Input Reporting Threshold: 1%*
    • Voltmeter Range: 0 to 10V
    • Voltmeter Reporting Threshold: 0.1V*
    • Analog Input/Voltmeter Accuracy Better than 5%< /li>
    • MQTT: Yes
    • CoAP: No
