FP9000A

Analog-addressable fire alarm control panel with 1 circuit

FP9000A

Awaiting delivery

Analog-addressable fire alarm control panel with 1 circuit

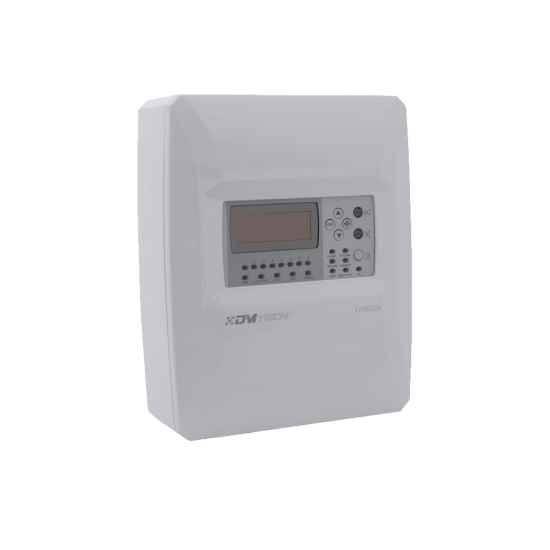

FP9000A is an analog-addressable fire alarm panel with one loop up to 250 addressable devices.

  • The panel is housed in a plastic box with compact dimensions for surface mounting.
  • FP9000A is easy for installation, maintenance and daily operation by user.
  • Certified according to EN54-2 and EN54-4
  • 1 addressable circuit (DMTech protocol)
  • Up to 250 number of devices on the address circuit
  • LCD display 4x20 characters
  • 8 LED zones
  • 1 conventional line with 32 detectors
  • 2 numbers of programmable relays outputs
  • 2 monitoring outputs
  • Memory up to 1240 events
  • Power supply: 18-26V / 1.5A
  • Multilingual interface
  • li>
  • Programming with DMTech software
  • RS485 interface
  • A range of test modes and line, output and panel setup capabilities
  • Plastic box housing
  • Accumulator batteries: 2x 12V, up to 5Ah
  • Dimensions (HxWxD): 305x245x100 mm
