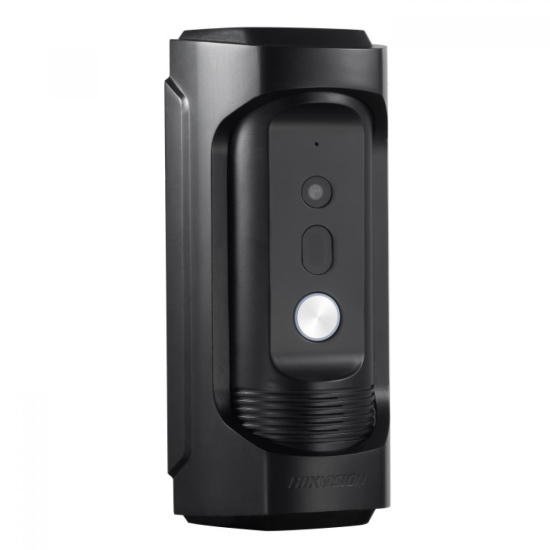

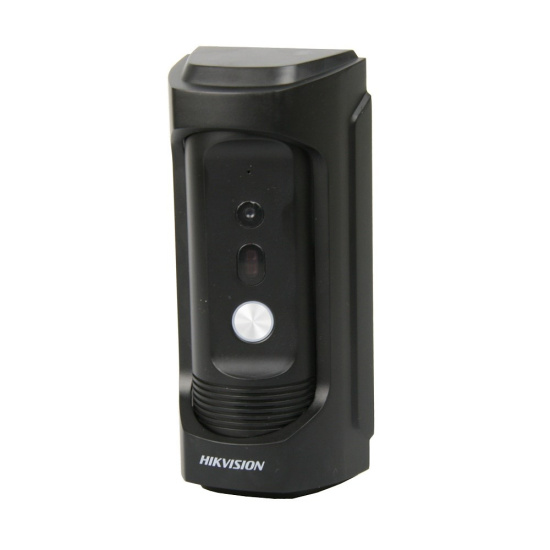

DS-KB8113-IME1

Vandal resistant single post front panel/doorbell for IP video intercom systems

DS-KB8113-IME1

Available

Vandal resistant single post front panel/doorbell for IP video intercom systems

  • Vandal-resistant single-post front panel for Hikvision IP video intercom system
  • Suitable outdoor unit solution for intercom systems for villas, houses or access to warehouses and parking lots
  • Built-in camera with 2MP resolution with 88° lens
  • Noise reduction and echo cancellation
  • Remote configuration via web interface
  • WDR
  • Built-in IR illumination up to 3m provides a clear picture at night
  • Compatible with first and second generation Hikvision IP video intercom systems
  • Built-in microphone and speaker in video intercom system
  • 1 alarm input /1 NO/NC relay output
  • 1 subscriber call button
  • 10/100Mbps Ethernet port
  • IK09, IP65 ( -30°C to +50°C)
  • The vandal-resistant doorbell has a metal housing and IK09 degree of protection
  • Presence detection and automatic recording
  • Power supply: 12 Vdc/12W or 48 Vdc standard PoE
  • Dimensions: 161.85 mm × 74.13 mm × 53.2 mm
  • For surface mounting
