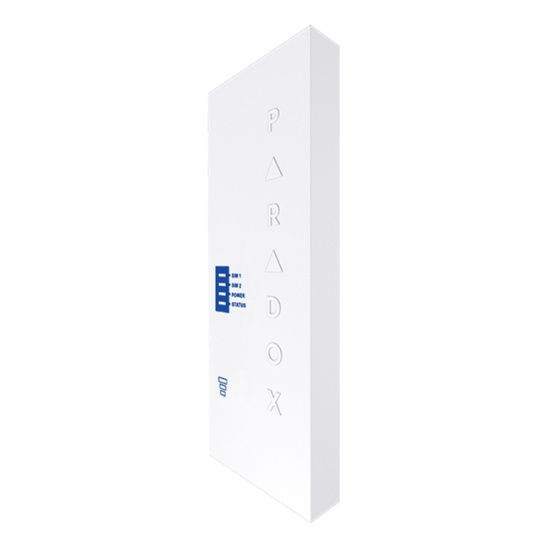

PCS265LTE

LTE/4G/3G/2G GPRS/GSM communication module

PCS265LTE

Awaiting delivery

LTE/4G/3G/2G GPRS/GSM communication module

  • PCS265 is 4G communication solutions for Paradox control panels. They can be used as a backup to the traditional phone line or as the first communication channel for the security system when no other type of connectivity is available
  • LTE/4G/3G/2G reporting to IPR512 GPRS/ IP monitoring receiver or IPRS-7 IP/ GPRS software IP/ GPRS receiver
  • Auto switch to 3G/2G when 4G fails
  • Supports two SIM cards for network redundancy
  • Connection monitoring with the control panel. Access the module with the Insite GOLD app for smartphones
  • Activate or deactivate the system via SMS sent to PCS265
  • Sends SMS messages to 16 mobile numbers
  • Connection via GPRS with BabyWare and the mobile app Insite GOLD via Swan server.
  • Easy installation via 4-wire serial connection to the control panel
  • Dual tamper (wall and case)
  • Encrypted communication (128-bit AES)
  • Li-ion battery (in the set) allows operation in the absence of power from the panel
  • option RS-485 connection to the panel (1xCVT485 in the set), allows connectivity up to 100m
  • Reports when communication is lost with the panel in case of cable cut or loss of power
  • Possibility to move the antenna up to 18 meters from the module, via the antenna extensions, to improve signal strength
  • Operating temperature: -20°C to 50°C
  • Dimensions: 20.8 x 7.5 x 2 cm
  • Compatible with Spectra SP control panels , MG5000, MG5050 and EVO
  • EN 50136-1, EN 50136-2; EN 50131; SECURITY GRADE: 3
  • Power supply: 12V/300mA
