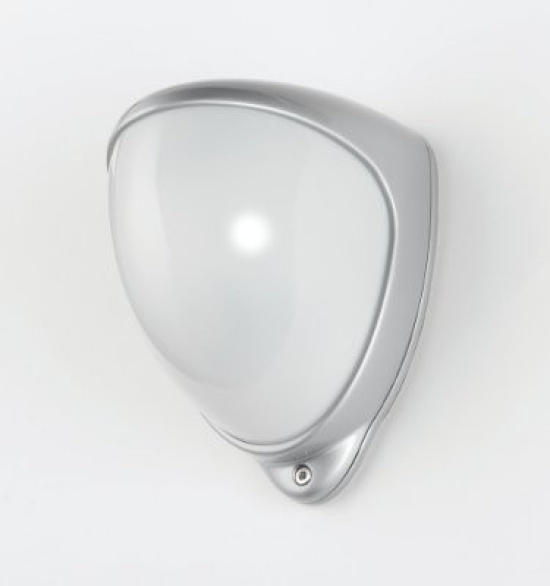

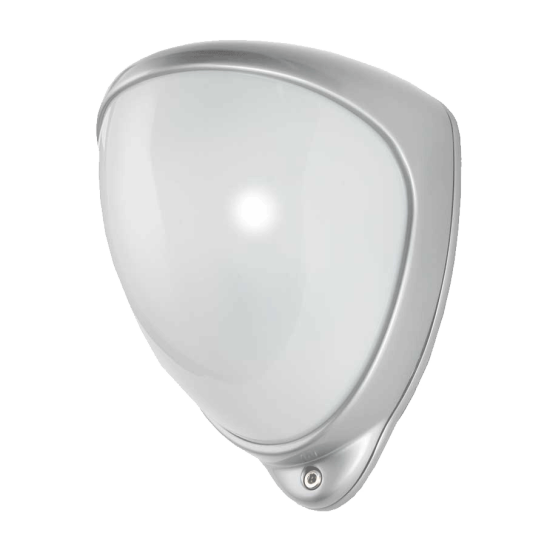

GJD360
Combined outdoor detector PIR and MW 9.9 GHz

GJD360
Available
Combined outdoor detector PIR and MW 9.9 GHz
- Combined outdoor detector PIR and MW 9.9 GHz
- Range: programmable up to 30 meters
- Detection angle: 10° ~ 70°
- Max coverage: 30 m X 30 m
- Adjustment: 180 ° horizontal rotation + 90° vertical tilt
- Optimal mounting height 3 meters, maximum mounting height 6 meters
- Power supply: 9-15 VDC
- Operating temperature: -20 °C to + 55 °C
- Dimensions 145 x 120 x 115mm
- Degree of protection against dust and moisture: IP 55 li>
