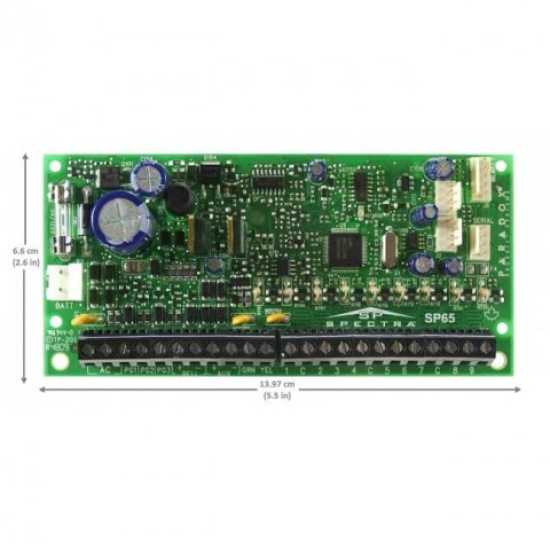

SP65

Expandable 9 to 32-Zone Control Panels

Available

Expandable 9 to 32-Zone Control Panels

Supports StayD mode
4-wire expansion bus
9 (18 with ATZ) on board zones expandable to 32
3 on board PGM expandable to 16 PGMs
2 Partitions
32 User Codes
Supports PCS Series
Supports IP100 Internet Module
Supports VDMP3 Plug-in voice dialer
In-field firmware upgradeable via a 307USB and Babyware
Menu-driven programming for the Installer, Master and Maintenance codes
Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting (SP65: via PCS200 only – GSM reporting)
Patented 2 opto coupler dialer circuit – the most reliable dialer in the industry (US Patents 5751803, RE39406)
Automatic Daylight Savings Time feature
Push button software reset (reset to default values and restart)
Direct connect at 9.6k baud with Babyware
256 events buffered
