HF1-BT

Stand-alone access control reader compatible with Mifare cards

HF1-BT
HF1-BT
HF1-BT
HF1-BT
Share Tweet

HF1-BT

Available

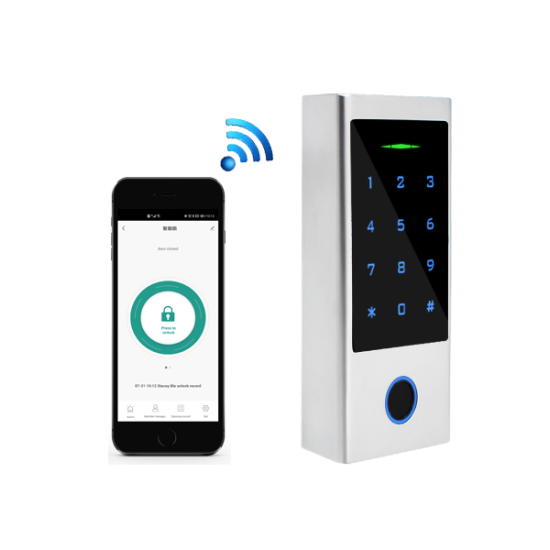

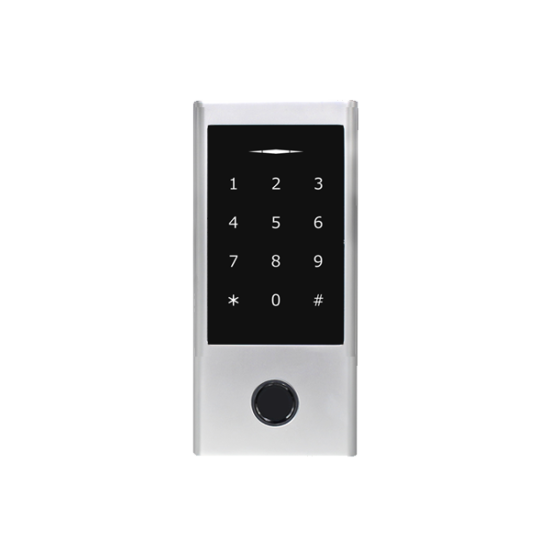

Stand-alone access control reader compatible with Mifare cards

  • Stand-alone contactless reader for access control with Mifare cards 13.56Mhz
  • Made of stainless steel
  • Touch keyboard and built-in fingerprint reader
    • < li>Built-in memory for up to 888 cards, 100 fingerprints and 100 mobile users
  • 1 door relay (NO, NC, Common)
  • 1x Exit button input
  • Wiegand In/ Out

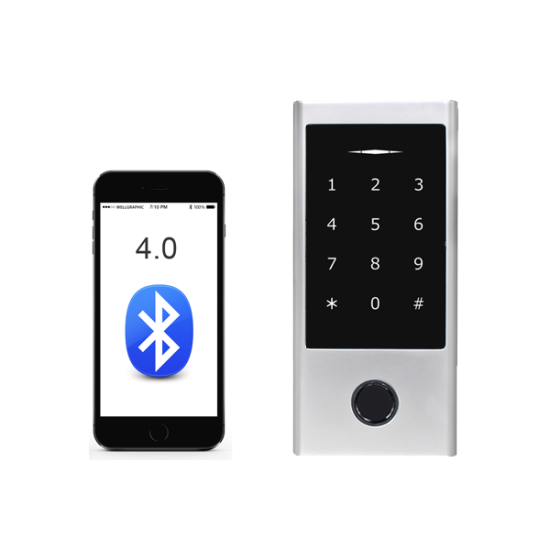

  • Bluetooth
  • Free Tuya Mobile App
  • IP66
  • For surface mounting
  • Card/PIN access / fingerprint
  • Maximum output load to the locking mechanism 2Amp
  • Tamper
  • Dimensions: 145x68x25 mm
  • Power supply: 12-28VDC
  • Operating temperature: - 30°C to +60°C
