D100-BT(Black)

Available

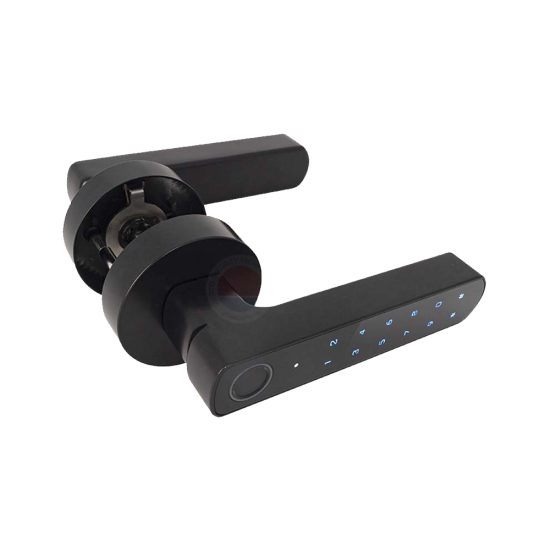

Smart stand-alone lock

D100-BT is a smart standalone lock providing access via Tuya mobile app, fingerprint or PIN. The lock has a built-in memory for 100 fingerprints and 155 PIN codes, and through the mobile application - up to 100 users.

D100-BT is compatible with WiFi Gateway (GW-01) for WiFi communication, which allows remote code generation, remote access or real-time log inspection. Specially designed for security and access control of apartments rented out as a hotel.

The D100-BT smart stand-alone lock comes complete with a deadbolt and also offers a mechanical key for emergency opening as well as a USB port for supplying current when there is no charge in the batteries.

D100-BT is made of zinc alloy, with a modern and elegant design. External power supply and mechanical key offer emergency door opening in case of dead battery or damage.

FEATURES:

• Tuya Smart mobile app available for iOS and Android
• Device sharing function, Push notification, log file view
• Compatible with WiFi Gateway, for WiFi communication
• Programming mode: keyboard + mobile app
• PIN code length: 4~6 digits
• Power supply: 4pcs. AAA batteries
• Battery life up to 6 months (30 opens/day)
• Voice warning and light indication for low batteries
• USB-C power port in case on dead batteries
• Mechanical emergency opening key
• Speaker and illuminated keypad
• Made of zinc alloy
• Compatible with doors with multi-point lock type
• Opening direction: left/right (reversible)
• Electromechanical clutch
• Types of PIN codes generated offline or online:
< li>PIN codes with validity date and time: allows access within a certain time interval set by the application (up to 10 years);
• PIN codes are valid only once.
• Note: PINs generated offline must be used at least once within 24 hours of generation

SPECIFICATIONS:

• Power supply: 4 AAA batteries
• Standby consumption: ≤ 25µA
• Consumption in standby mode: ≤ 120mA

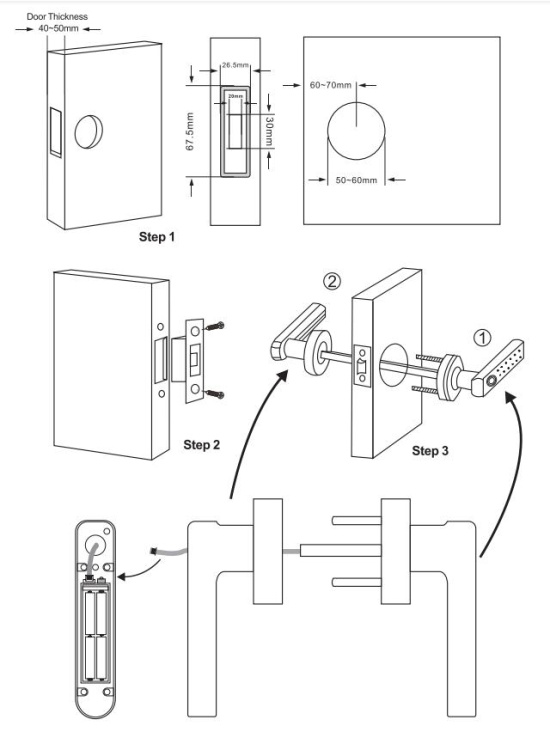

• Door leaf thickness: 30~50mm
• Tuya APP users: 100
• PIN users: 100
• Users of fingerprints: 155
• Bluetooth communication: 2.4GHz
• Operating modes:Mobile APP, Fingerprint, PIN, Mechanical Key
• Programming Mode: Keyboard + Mobile APP
• Opening Direction: Left / Right (reversible)
• Material : Zinc alloy
• Colour: black

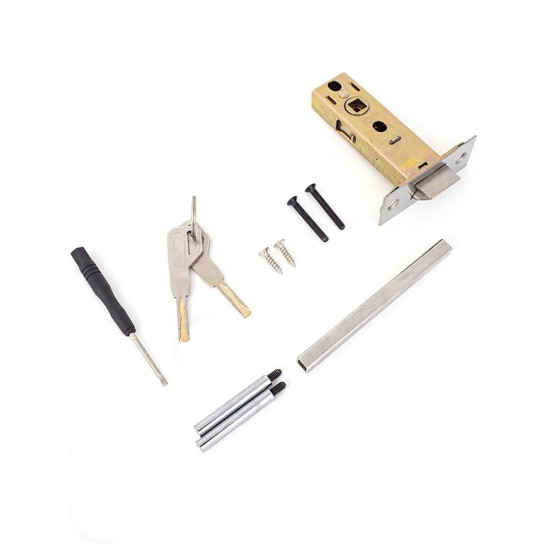

• Supplied with an electromechanical stop measuring 26x50x60 mm
• Operating temperature: -25°C ~ +60°C

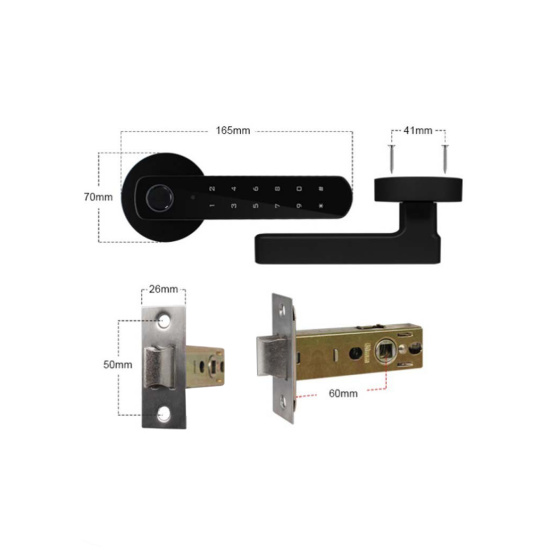

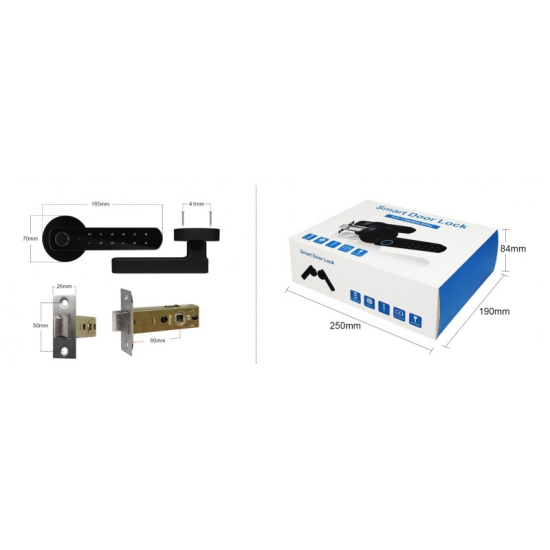

• Lock size (LxWxH): 165 x 29 x 65.5 mm
• Gross weight: 1.2 kg
