From October, Sectron starts to offer Hikvision’s new product line – Turbo HD. The new products are based to the revolutionary HD-TVI technology (High Definition Transport Video Interface).
HD-TVI is new technology for transmission of video signal with megapixel resolution (720p/1080p) through standard coaxial cable up to 500 m. When using HD-TVI systems you do not need to build any TCP/IP LAN. This systems use standard 75 Ohms coaxial cable and bnc connectors between the camera and the DVR.
HD-TVI systems allow you to utilize the existing coaxial cables which makes them ideal solution for upgrade of the current analogue video surveillance systems. Because there is no signal compression HD-TVI allows you to have megapixel resolution image without latency, jitter or complicated configurations. Absence of additional network devices, servers and software make HD-TVI most optimal variant for installation, support and ease of use. HD-TVI is most budget-optimized solution for upgrade of the existing CCTV system to megapixel resolution.
Higher resolution
- HD megapixel resolution for video surveillance (720p/1080p)
- Real time video surveillance (720p/1080p @ 25 fps)
Easy installation with high efficiency
- No need to invest in new transmission network or active network devises
- No need to have extensive PC or IP networks knowledge
- No need to rewire again if you have existing analogue CCTV system
Stable and reliable operation
- No signal quality loss
- No latency or jitter in the video surveillance signal
- No need to have redundant internet connection to every camera
Long length of cable runs
- Transfer of video surveillance signal with megapixel resolution through coaxial cable up to 500 m
- Transmission of video and data over coaxial cable – you will have possibility to remote control of the camera settings and OSD menu over the coaxial cable
- Transmission of HD-TVI video and data over twisted pair
Compatibility
- Open standard that enables the combination of HD-TVI products from different manufacturers
- Ability to use in HD-TVI system cameras with different resolutions (720p/ 1080p) and combine them with standard analog and IP cameras

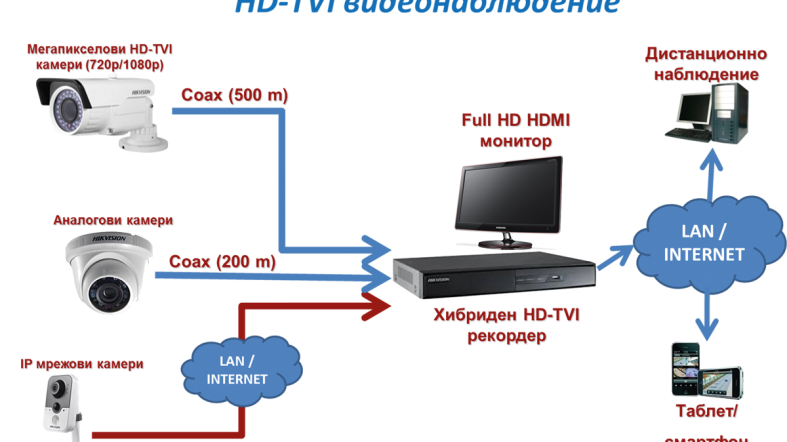

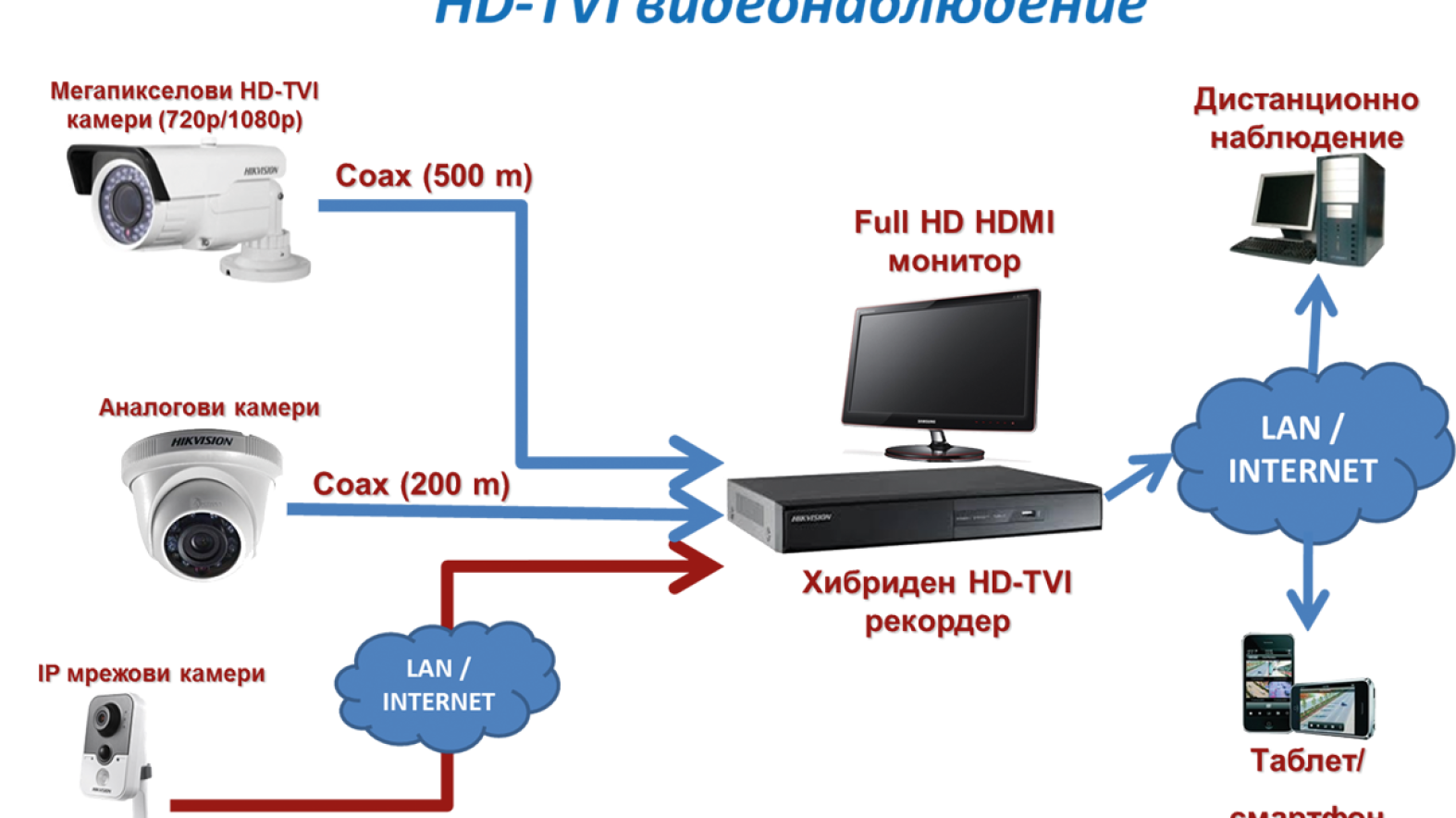

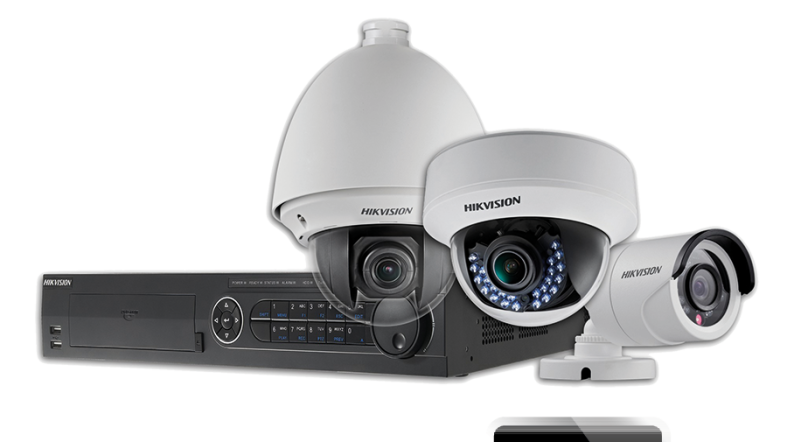

Hikvision Turbo HD series combine megapixel (720p/1080p) HD-TVI cameras and hybrid HD-TVI video recorders.
Hikvision Turbo HD recorders are hybrid DVR’s that support both HD-TVI cameras and standard analog cameras (freely selectable for each video input). In addition, HD-TVI recorders support and record up to two IP cameras Hikvision. This provides maximum flexibility for users to use one recorder for different standards and types of cameras as needed.
