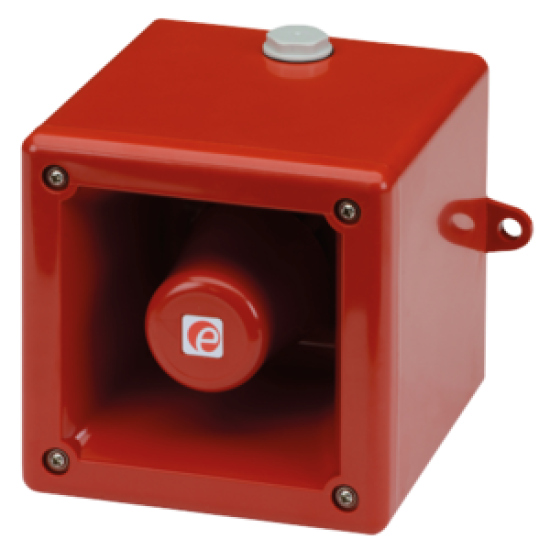

IS-A105N
Взривообезопасена сирена high output, 105dB(A) alarm sounder, ATEX, IECEx
IS-A105N
Ограничена наличност
Взривообезопасена сирена high output, 105dB(A) alarm sounder, ATEX, IECEx
- Взривообезопасена сирена high output, 105dB(A) alarm sounder, ATEX, IECEx
- Input overload and reverse current protection
- Auto synchronised sound output
- Unit can be mounted using external lugs or internal
- BESA compatible fixing positions.
- Duplicate cable terminations
- (in & out for daisy-chain installations).
- Available with custom tone configurations and frequencies.
- ATEX certificate: SIRA 04ATEX2301X
- IECEx certificate: IECEx SIR 04.0038X
- FM approved:
- GOST-R certificate: POCC GB.JB05.B03365
Specification
Nominal output: | 105dB(A) @ 1m +/- 3dB – Tone 2*[96dB(A) @ 10ft/3m] |
No. of tones: | 49 (UKOOA/PFEER compliant) |
No. of stages: | 3 |
Volume control: | Max. 105dB(A); Min. 96dB(A) – Tone 2 |
Effective range: | 60m/197ft @ 1KHz |
Voltage: | 16-28vdc via Zener barrier or galvanic isolator |
Current: | 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier |
Ingress protection: | IP66 |
Rating: | Continuous |
Housing material: | UL94V0 & 5VA FR ABS |
Housing colour: | RAL3000 Red, RAL7038 Grey and White |
Fixings: | Stainless Steel |
Cable entries: | 2 x M20 clearance gland knockouts. Custom configurations also available. |
Terminals: | 0.5 to 2.5mm² |
Operating temp: | -40° to +60°C [-40 to +140°F] |
Storage temp: | -40° to +70°C [-40 to +158°F] |
Relative humidity: | 90% at 20°C [68°F] |
Weight : | 0.75kg/1.65I |
