KE1000HS23-Dca

S/FTP cable 4x2xAWG23, Category 7, 1000 MHz, LSOH, Euroclass Dca - s2, d1, a1, 500 m on reels

KE1000HS23-Dca
KE1000HS23-Dca
KE1000HS23-Dca
Share Tweet

KE1000HS23-Dca

Available

S/FTP cable 4x2xAWG23, Category 7, 1000 MHz, LSOH, Euroclass Dca - s2, d1, a1, 500 m on reels

KE1000HS23-Dca

S/FTP cable 4x2xAWG23, Category 7, 1000 MHz, LSOH, Euroclass Dca - s2, d1, a1, 500 m on reels

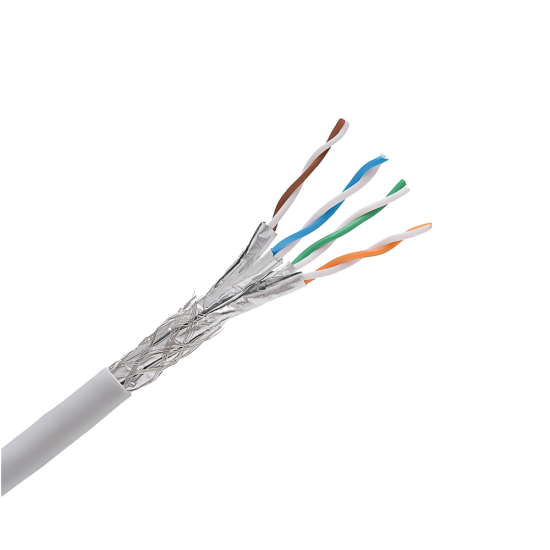

  • Shielded  FTP (U/FTP) cable

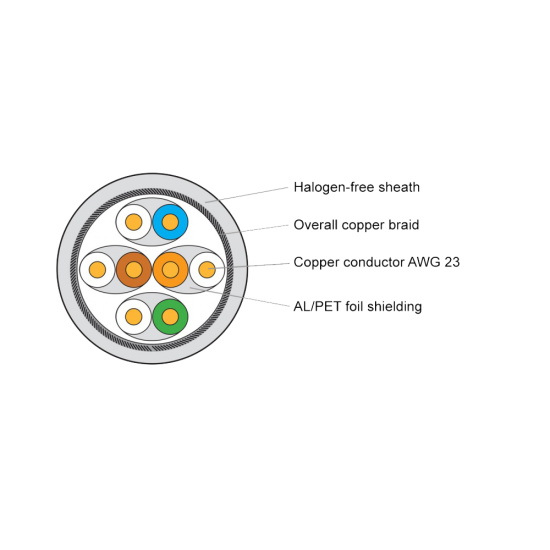

  • Each pair individually shielded with AL/PET foil, overall copper braid, halogen-free sheath
  • 4x2xAWG23
  • Category 7
  • Euroclass Dca
  • Enables transmission of all high-speed protocols including 10GBASE-T
  • Tested in bandwidth up to 1000 MHz
  • Enables transmission of non-standard protocols used in hospitals, residential areas (home networking) and so on
  • Enables RJ45 connectors to be mounted directly to the cable
  • Complies with the Construction Products Regulation (CPR) EU No. 305/2011 and reaction to fire requirements according to the harmonized standards EN 50575: 2014+A1: 2016

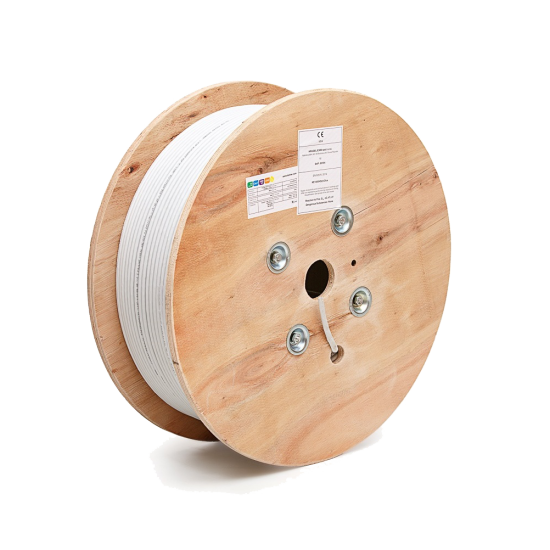

  • Package: 500 m on reels
  • Suitable for places with higher level of electromagnetic interference
